DeReO PS

APPLICATIONS

  • Inspections of suspicious objects in public areas (IED)

  • Inspections of parcels, cars (door, trunk, tires, engine parts, ...), pieces of luggage to search for illegal materials and equipment, or in the scope of counter-smuggling (borders and customs)

  • Inspections of walls and furniture to search for bugs and miniature cameras (counter-spy)

  • Investigations on a crime scene or in laboratories (forensic)

KEY FEATURES

Very Portable:

  • X-ray pictures anywhere (5kg)
  • Battery powered

Large Area:

  • Active area of 24 x 30 cm (diagonal : 38 cm / 15’’)

Quick Set-up:

  • X-ray pictures at anytime

Digital:

  • Instant results
  • Very easy set-up and use, thanks to the automatic real-time filter magnifier, and to the wide contrast latitude of digital technologies
  • Very user-friendly Maestro software
  • Post-processing
  • TIFF & JPG format
  • Easy archiving & reporting
  • No more consumables (films and chemicals) & dark room needed

Image Quality:

  • High resolution (70/120 μm) and high contrast (16 bit)

High Sensitivity:

  • Ability to X-ray a large range of different objects and materials, from light materials such as paper, up to several mm Fe

Thin:

  • Possibility to slide the DeReO PS between 1 object and a wall

Real-time:

  • Real-time X-ray pictures for urgent image acquisition and analysis

Robust:

  • Real 2D panel. There are no mirror, neither fragile moving parts inside the detector such as engine and belt

Compatibility:

  • Works with Golden Engineering X-ray generators. No constant potential X-ray sources needed.

  • Active area : 24 x 30 cm
  • Resolution : 70/120 μm
  • Greyscale : 16 bit
  • CCD camera (DRZ-Std / Csl)
  • Total dimensions : L256 x H410 x 77 mm

  • Weight : 4,5 kg

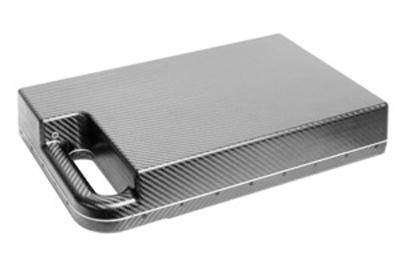

  • Carbon fiber casing
  • Active area touches the edge of 3 sides of the detector
  • Ethernet and/or wifi communication
  • Up to 8h battery power

  • Very intuitive software interface
  • Real time X-ray capture
  • Zoom in, zoom out and screen adjustment ‣ Picture rotation
  • Horizontal / Vertical flip
  • Cropping
  • Access to the LUT (look-up-table)
  • Black and white reversal
  • Real time filter magnifier
  • Real time edge enhancement filter
  • Embossing filter
  • Range of specific NDT filters and tools (noise reduction, frequency filter, ...)
  • Measurement/profile
  • Anotations
  • Original picture data are saved and always follow the modified image
  • Pixel map
  • Any language available upon request
  • X-RIS is open to discuss the development of new software tools
  • Wireless modules
  • Battery-powered
  • IP66 Carrying case
  • Golden Engineering X-ray generators and accessories

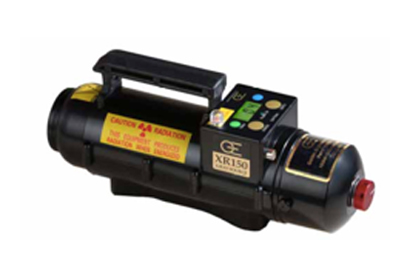

    • XR150
    • XR200

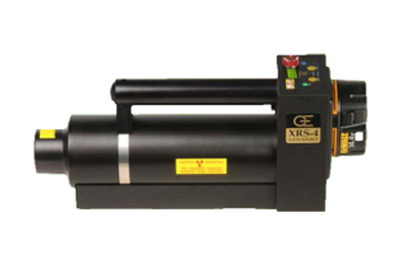

    • XR-S3
  • Back pack
  • Feet for vertical position
